The Triple Offset Butterfly Valve represents the pinnacle of butterfly valve engineering, designed to deliver zero leakage, bi-directional sealing, and exceptional performance under high pressure and temperature conditions. This comprehensive guide explores its design principles, advantages, materials, industrial applications, comparison with other valve types, installation best practices, and FAQs. Whether used in oil & gas, petrochemical, LNG, power generation, or marine industries, the triple offset butterfly valve provides unmatched reliability and durability.

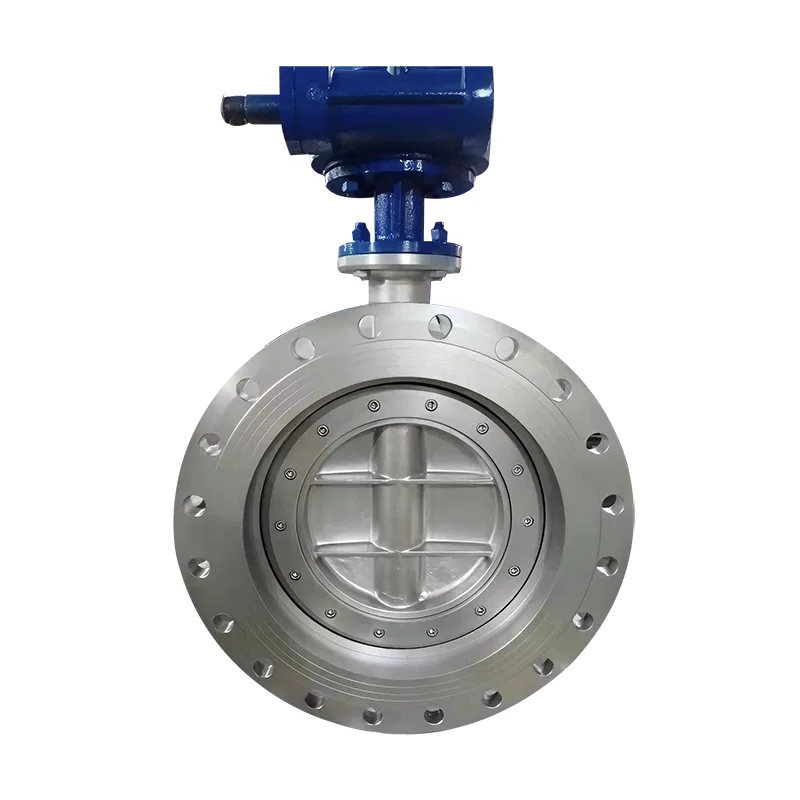

A Triple Offset Butterfly Valve (also known as a triple eccentric butterfly valve) is a high-performance industrial valve engineered for tight shut-off, even under extreme operating conditions. Unlike concentric or double offset valves, it features three distinct geometric offsets that eliminate friction during operation and ensure metal-to-metal sealing.
These valves are widely used in industries requiring zero leakage performance, high temperature resistance, and long service life.
| Offset | Description | Purpose |
|---|---|---|
| First Offset | Shaft positioned behind the valve seat centerline | Reduces seal contact during operation |
| Second Offset | Shaft offset from pipeline centerline | Allows cam-like motion for smooth opening |
| Third Offset | Conical sealing geometry | Ensures zero leakage metal-to-metal sealing |
The third offset is the most critical innovation. It creates a torque-seated design that eliminates rubbing between disc and seat, significantly extending valve life.
For high-pressure applications in oil and gas pipelines, triple offset butterfly valves often outperform traditional gate and globe valves in both cost and maintenance efficiency.
| Feature | Double Offset | Triple Offset |
|---|---|---|
| Sealing Type | Soft seat / resilient seat | Metal-to-metal seat |
| Leakage Class | Limited | Zero leakage (ANSI Class VI) |
| Temperature Range | Moderate | High temperature & cryogenic |
| Durability | Medium | High |
The triple offset design is ideal for severe service environments, making it the preferred solution in refineries and LNG facilities.
Depending on application requirements, materials may include:
Seat materials often include hardened stainless steel or stellite overlay to enhance wear resistance.
Triple offset butterfly valves are commonly used in:
In high-risk industries where leakage is unacceptable, selecting a premium manufacturer such as Gongchuang ensures safety, compliance, and long-term reliability.
Consider the following factors:
Working with an experienced manufacturer like Gongchuang ensures the correct valve specification for your industrial needs.
Because it uses a metal-to-metal seat and torque-seated design that eliminates soft sealing materials vulnerable to heat damage.
Yes, properly designed triple offset butterfly valves can achieve ANSI Class VI leakage standards.
Yes, with appropriate material selection and extended bonnet design.
Oil & gas, petrochemical, LNG, and power generation industries benefit the most.
With proper maintenance, triple offset butterfly valves can last decades in severe service environments.
The Triple Offset Butterfly Valve is the ultimate solution for industries demanding high reliability, zero leakage, and long service life. Its advanced geometry, metal-to-metal sealing, and compliance with international standards make it superior to conventional valve designs.
If you are looking for a durable, high-performance industrial valve, Gongchuang provides premium-grade triple offset butterfly valves engineered for the most demanding environments.
