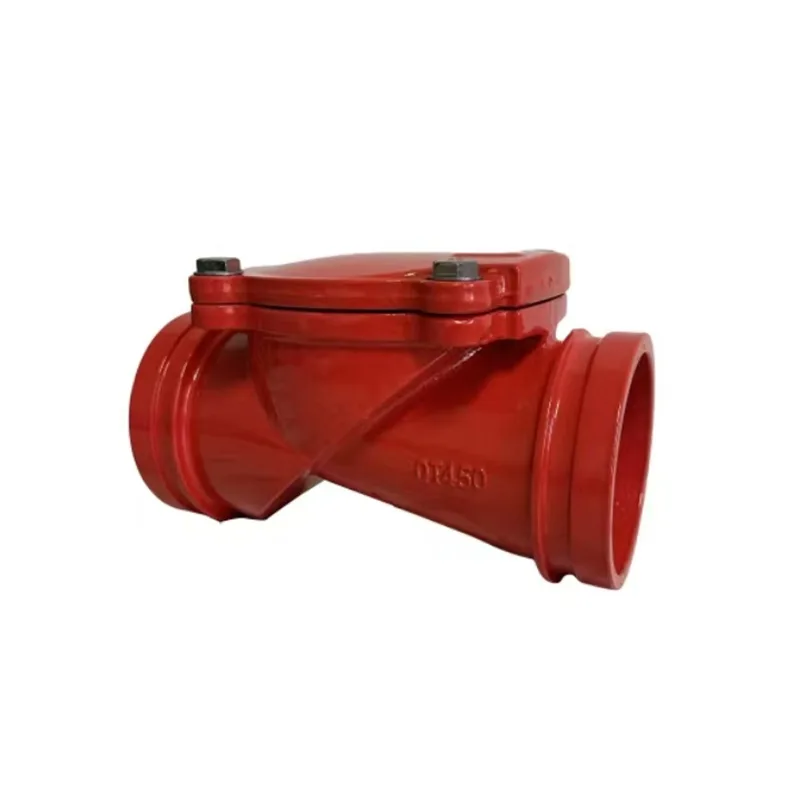

A Groove Rubber Flap Check Valve is a high-efficiency backflow prevention device widely used in drainage, wastewater, flood control, and industrial piping systems. Unlike traditional metal swing check valves, it features a flexible rubber flap and grooved-end connection that ensures tight sealing, corrosion resistance, low maintenance, and simplified installation.
In this in-depth guide, we explore how groove rubber flap check valves work, their structural advantages, installation methods, comparison with other valve types, material selection, performance standards, maintenance practices, and real-world applications. Whether you are an engineer, contractor, distributor, or procurement specialist, this comprehensive article will help you understand why this valve design is becoming a preferred solution globally.
A Groove Rubber Flap Check Valve is a non-return valve designed to prevent reverse flow in piping systems. It features:
The grooved design allows for fast assembly using mechanical couplings, making it ideal for municipal water supply, stormwater systems, HVAC, and industrial pipelines.
The working principle is simple yet highly effective:
Because the sealing component is flexible rubber rather than rigid metal, the valve achieves:
| Component | Material Options | Function |
|---|---|---|
| Valve Body | Ductile Iron / Carbon Steel | Main pressure-bearing structure |
| Rubber Flap | EPDM / NBR / Neoprene | Sealing and flow control |
| Reinforcement Layer | Nylon Fabric / Steel Insert | Strengthens flap durability |
| Grooved Ends | Precision Machined Grooves | Quick mechanical coupling |
High-quality manufacturers like Gongchuang emphasize reinforced rubber construction to ensure long service life even in corrosive wastewater environments.
The flexible rubber flap conforms perfectly to the seat, reducing leakage risk.
Unlike metal swing valves, rubber flap valves resist chemical corrosion and rust.
With fewer moving parts, maintenance frequency is significantly reduced.
Grooved connections reduce installation time by up to 50% compared to flange systems.
Rubber eliminates metal impact noise during closure.
| Feature | Groove Rubber Flap | Swing Check Valve |
|---|---|---|
| Sealing | Flexible Rubber Seal | Metal Disc Seal |
| Noise Level | Low | High |
| Maintenance | Minimal | Regular Required |
| Corrosion Resistance | High | Moderate |
| Installation | Quick Grooved | Flanged/Bolted |
In urban infrastructure projects, groove rubber flap check valves play a critical role in preventing reverse flooding during heavy rainfall events.
Proper installation ensures optimal sealing performance and long-term reliability.
With proper operation, a high-quality groove rubber flap check valve can last:
Routine inspection every 12 months is recommended for critical systems.
| Parameter | Typical Range |
|---|---|
| Nominal Diameter | DN50 – DN600 |
| Pressure Rating | PN10 / PN16 |
| Temperature Range | -10°C to 80°C |
| Applicable Media | Water, Wastewater, Mild Chemicals |
Always evaluate:
They are typically designed for horizontal installation. Vertical installation requires confirmation from the manufacturer.
EPDM is commonly recommended for water and wastewater systems due to its chemical resistance.
Yes, when installed properly, grooved couplings can handle industrial pressure ratings safely.
The flexible flap closes smoothly without sudden metal impact, minimizing pressure spikes.
Gongchuang focuses on reinforced rubber technology, strict quality control, and customized sizing solutions for industrial clients worldwide.
If your piping system requires reliable backflow prevention, corrosion resistance, quick installation, and low maintenance costs, the Groove Rubber Flap Check Valve is an excellent solution. Its flexible sealing mechanism, durable construction, and efficient grooved connection make it ideal for modern infrastructure and industrial systems.
Whether you are designing a municipal drainage system or upgrading an industrial pipeline, choosing a trusted manufacturer ensures long-term performance and operational safety.
For detailed specifications, customization options, and competitive pricing, contact us today to discuss your project requirements.
